BLD2233/28-36 - R.F. Screened Desiccant Container Dehumidifier (Breather Tube) with 15 to 30% RH and Various Threads
5g to 400g Molecular Sieve Filled Unit
Availability:
In stock
SKU

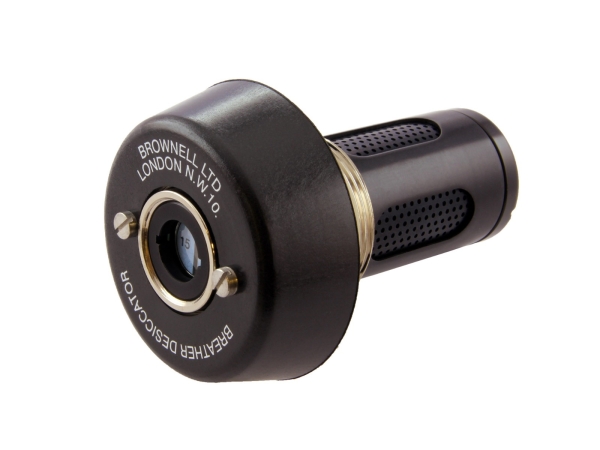

BLD2233/28-36 - Desiccant Container Dehumidifier (Breather Tube)
Breather Desiccators combine a humidity indicator plug and tubular body to create a single free breathing unit. Air enters the unit via a Polytetrafluoroethylene (PTFE) coated wire mesh to prevent ingress of dust and other small containments. The inlet is also protected by a weather shield for added protection.
Air entering the unit due to pressure differentials from atmospheric or altitude changes is dried to ensure the internal humidity remains low. If the pressure differential is reversed, the direction of the airflow is also reversed until pressure equalization is achieved.
This style of desiccator is commonly used on airborne equipment.
BLD2233/28 - NSN: 4440-99-225-3194
BLD2233/29 - NSN: 4440-99-225-3195
BLD2233/30 - NSN: 4440-99-225-3196
BLD2233/31 - NSN: 4440-99-225-3197
BLD2233/32 - NSN: 4440-99-225-3198
BLD2233/33 - NSN: 4440-99-225-3199
BLD2233/34 - NSN: 4440-99-225-3200
BLD2233/35 - NSN: 4440-99-225-3201
BLD2233/36 - NSN: 4440-99-225-3202
| Material | Aluminium |
|---|---|
| Thread Sizes | M20x1.5, M32x1.5, M39x1.5, M52x1.5, M60x1.5 |
